Smart Trimming Rip Saw

PRODUCT DETAILS

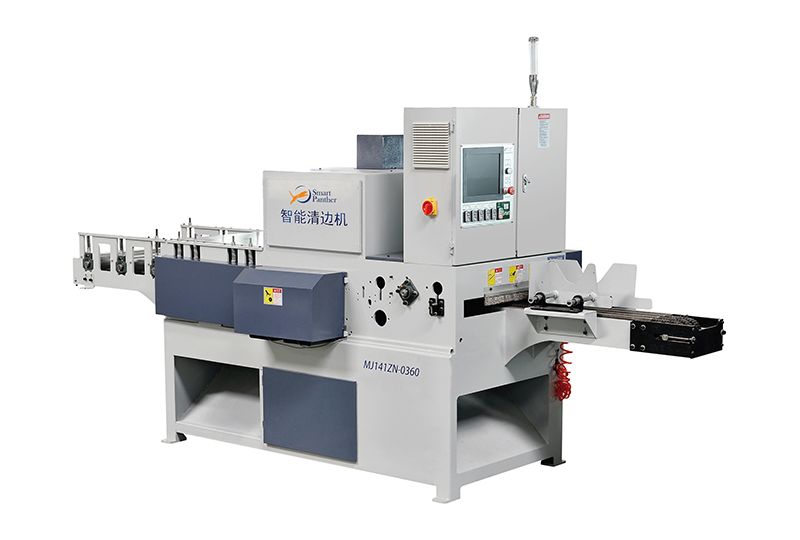

Product Name:  Smart Trimming Rip Saw

Application: Log wood board with bark on side

Working length:  400-600mm

Max. working width.:  300mm

Working height.:  12-25mm

Feeding Speed: 0-30m/min

PROFESSIONAL

50+ years experience

WARRANTY

3 years warranty

SERVICE

tech support 7*12H

SPARE PARTS

standard and unified

Technical PARAMETERS DETAILS
Smart Trimming Rip SawUnitMJ141ZN-0360
Machine total powerkw6.6
Feeding speedm/min0-30
Processing lengthmm400-600
Processing widthmm≤300
Processing thicknessmm12-25
Overall dimensionsmm3750x1250x1800
Product weightkg1700
Blade Sizemmφ150xφ50
Spacer Sizemmφ68xφ50
YOUTUBE VIDEo

Automatic recognize edge part and core by Strong Al system for precise cuting.


Compared with traditional trimming rip saw, our advantage:
1. Output rate greatly improved and higher precise cutting which solves the problem of manual sawing with low output and low precise.
2. This machine only need general worker while traditional trimming rip saw need skilled labor.One person takes care of two device for saving labor and increasing production. This can help enterprise solve the problem of labor proficiency.

Now this machine is the most advance Al scanning system in the market!Stable cutting 1. 2. 3 level Board with high precise & efficiency

Options for extension

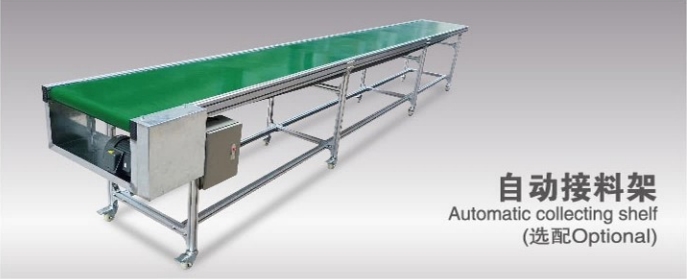

Automatic collecting shelf.

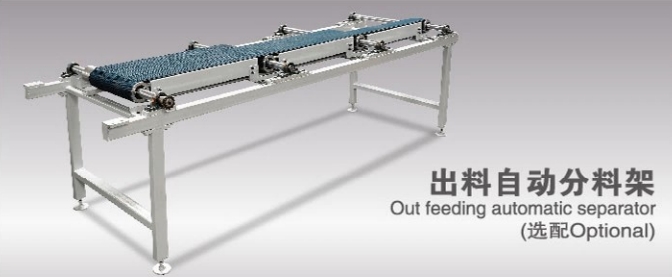

Out feeding automatic separator
