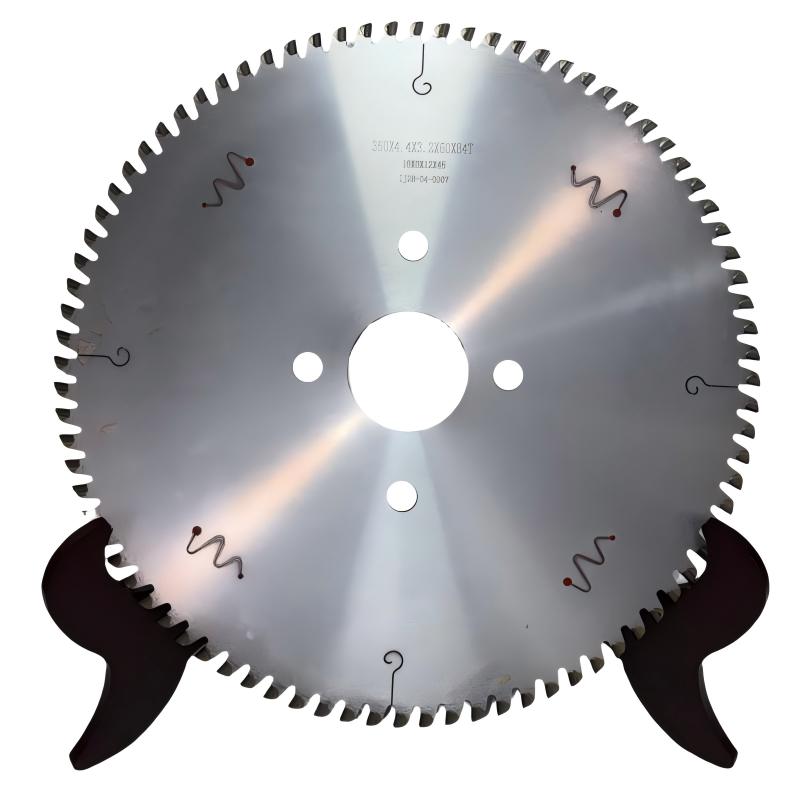

PCD Diamond Saw Blade for MDF and Engineered Wood
Precision Sizing for Industrial Panel Processing
Technical Specifications:
Diameter: 350mm(13.78″)
Teeth: 84T
Arbor: 60mm
Kerf: 4.4mm
Grind: ATB
Keyway:10×12×45°
- PCD Diamond Saw Blade for MDF and Engineered Wood — built for high‑precision cutting of MDF, particleboard and various engineered wood panels. Polycrystalline diamond teeth with TCG triple‑chip grind and deep chip gullets ensure efficient dust‑chip evacuation and burr‑free smooth cutting results.
- Fits circular saw machines; arbor bore with matched keyway enables fast mounting. High‑strength steel body features exceptional wear resistance and ultra‑long service life for continuous‑duty industrial panel processing, significantly lowering tool‑replacement downtime and production cost.
Core Selling Pionts
- Precision Cutting — Standard arbor bore + quenched high‑strength steel body for stable running and tight tolerances in heavy‑duty panel‑cutting production.
- Heavy‑Duty Durability — Polycrystalline diamond tips + optimized tooth geometry = reliable non‑stop industrial engineered‑wood cutting.
- Smooth Chip Evacuation — TCG triple‑chip grind teeth + deep chip gullets = burr‑free clean cuts with efficient dust & chip removal for MDF, particleboard and composite panels.
Key Features
- Precision Panel Cutting — Standard arbor bore + quenched high‑strength steel body for stable running and tight tolerances in heavy‑duty engineered‑wood panel‑cutting production.
- Ultra‑Long Service Life — Polycrystalline diamond tips deliver outstanding wear resistance for reliable non‑stop industrial cutting of abrasive MDF & particleboard.
- Splinter‑Free Cutting Finish — TCG triple‑chip grind teeth + deep chip gullets = burr‑free clean cuts with efficient dust‑chip removal for MDF, chipboard and composite panels.
- Production Cost Saving — Less frequent tool replacement minimizes machine downtime, improving overall productivity for high‑volume panel manufacturing.
Ideal For
- MDF & engineered wood panel cutting lines
- Particleboard & composite board processing
- Decorative panel & laminated board manufacturing
- Raw material processing for wooden furniture & flooring
| Diameter / mm | Kerf / mm | Arbor / mm | Teeth | Tooth Profile |
|---|---|---|---|---|
| 250 | 3.2 | 30 | 80 | TCG |
| 300 | 3.2 | 30 | 96 | TCG |
| 350 | 3.5 | 30 | 84/94 | TCG |
| 350 | 4.4 | 60 | 84 | TCG |
| 400 | 4.4 | 60 | 84 | TCG |
| 120 | 3.0-4.0 | 20/22 | 24 | ITT |
| 120 | 2.8-3.6 | 20/22 | 12+12 | ITT |
| 180 | 4.3-5.3 | 30 | 36 | ITT |

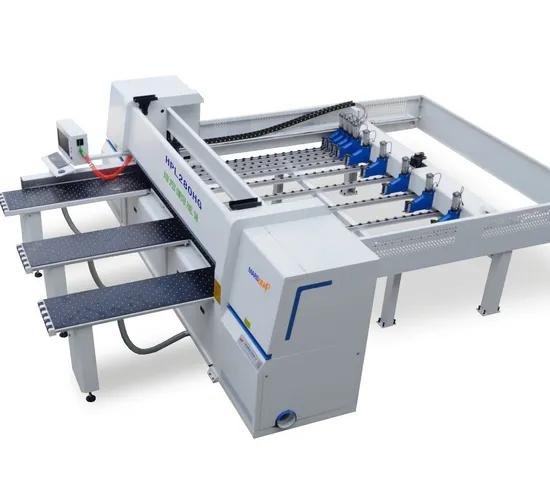

Electronic panel saw
Optimized for electronic panel saws. PCD diamond tips lower heat generation to prevent burn marks on abrasive engineered wood panels. Robust quenched‑steel body supports heavy‑duty continuous cutting for splinter‑free finished panels in one pass.

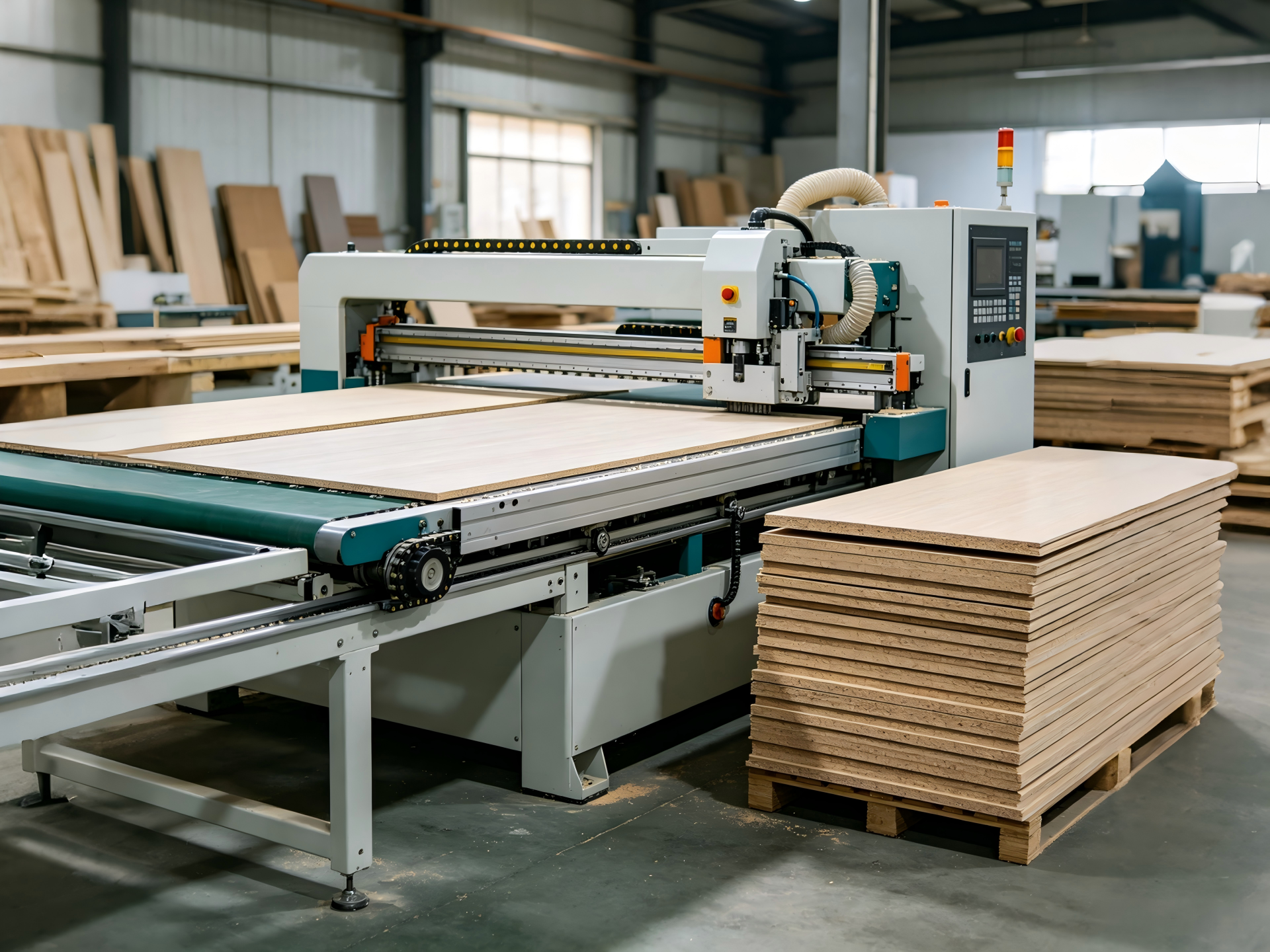

Reciprocating saw
Optimized for reciprocating saws. Heavy‑duty steel body adapts to non‑stop high‑speed cycle operation. PCD diamond tips control heat buildup, securing consistent cut quality for mass‑output engineered‑wood panels.

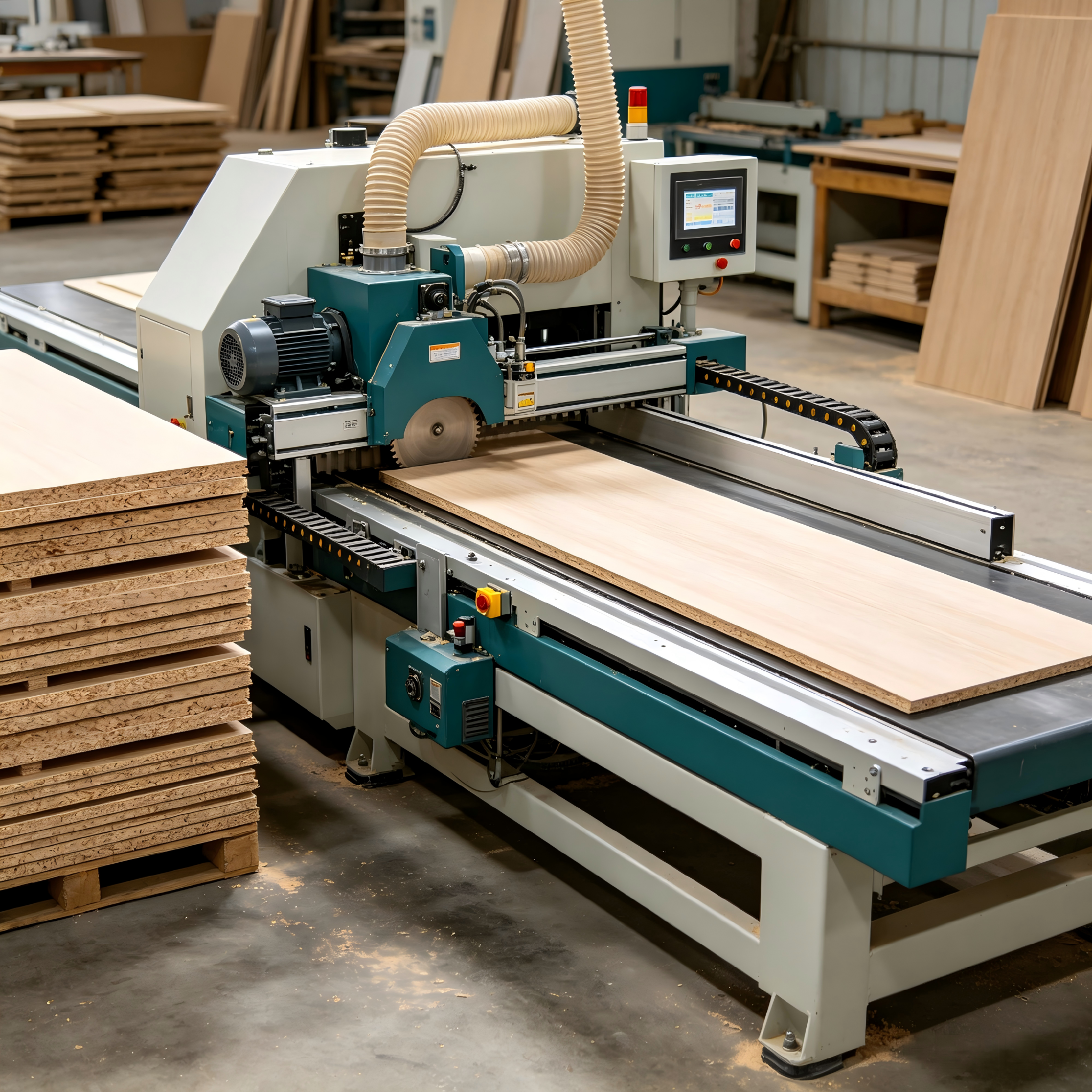

Sliding table saw
Optimized for sliding table saws. High‑strength steel body resists cutting stress. PCD diamond tips improve heat dissipation and prevent material sticking, delivering reliable performance for engineered‑wood panel processing.

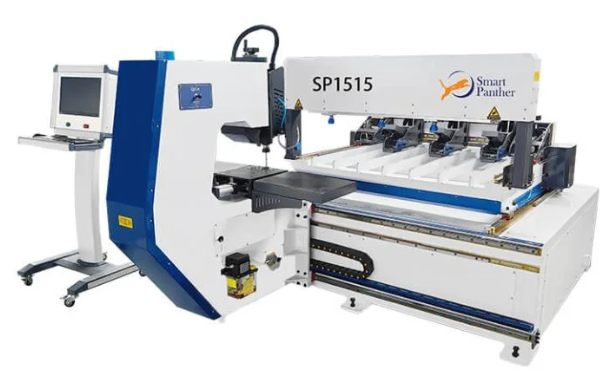

CNC panel sizing saw
Optimized for CNC panel sizing saws. Heavy‑duty steel body resists sustained cutting loads. PCD diamond tips relieve heat buildup, securing stable precision for high‑output engineered‑wood panel manufacturing.

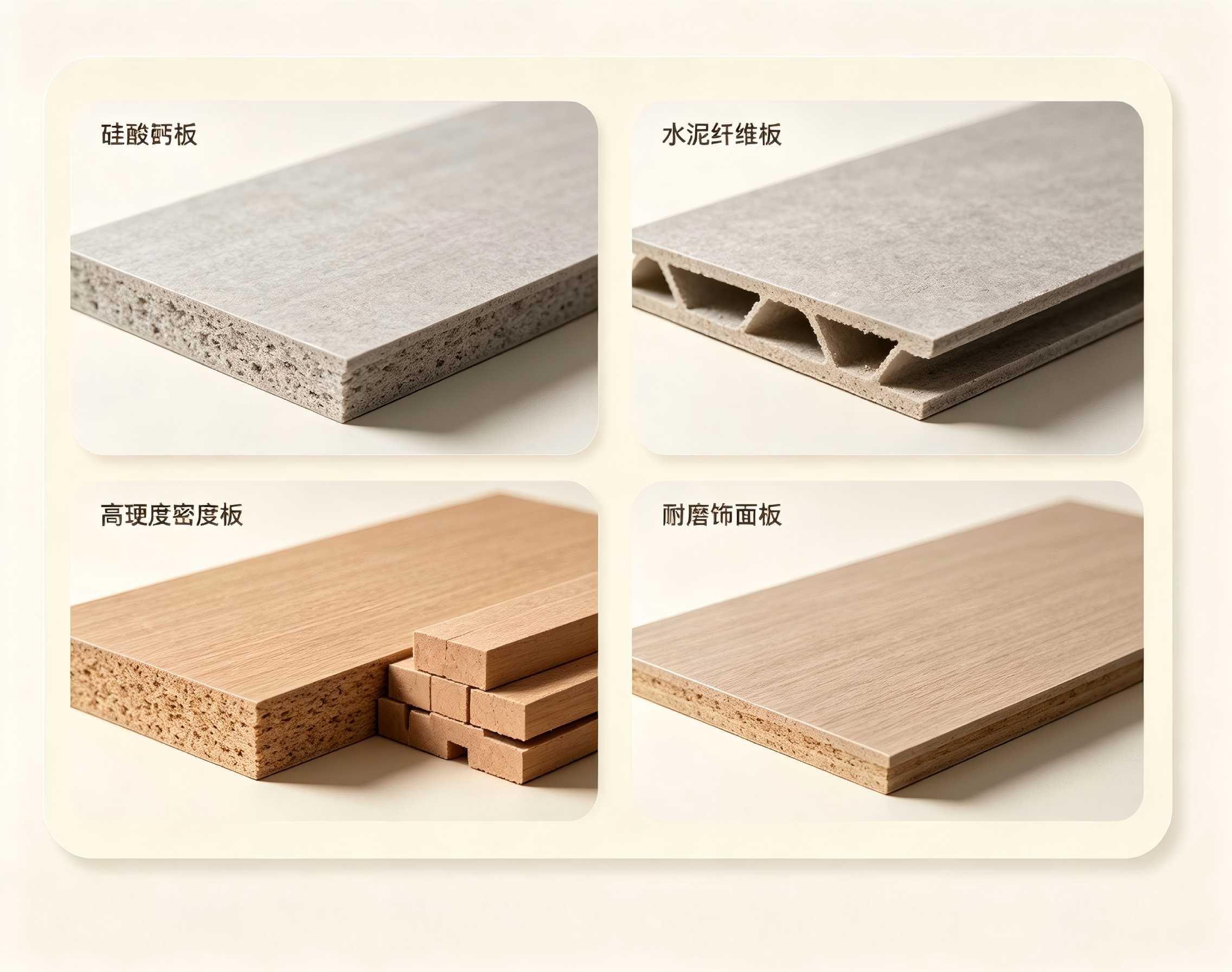

Cutting Materials
Suitable for calcium‑silicate board, cement fiber board, high‑density hard MDF and wear‑resistant decorative panels. PCD diamond tips prevent blade burn and material adhesion for clean cutting performance.
INDUSTRIAL SAWMILL APPLICATIONS
Ideal for industrial sawmill applications, processing calcium‑silicate board, cement fiber board, high‑density hard MDF and wear‑resistant decorative panels for furniture, cabinetry, flooring and construction panels.
