Product Name: Multi-blade rip saw QMJ143E
Application: multi-blade ripping cutting sawing
Working Width: 300mm
Working Thickness: 10-120mm
Min. working length: 600/300(single/continuous)
Feeding Speed:4-30m/min

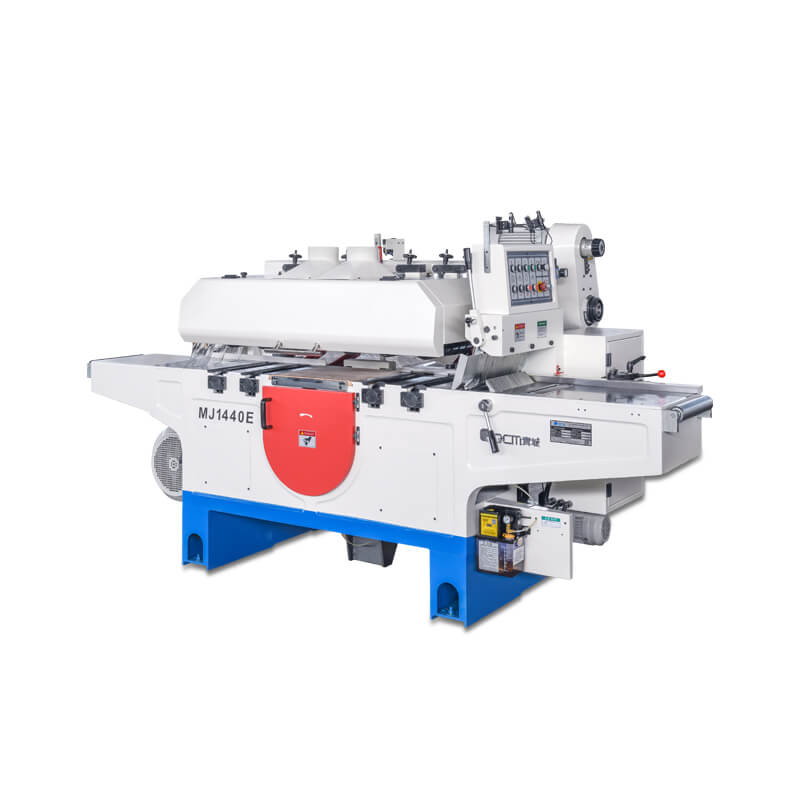

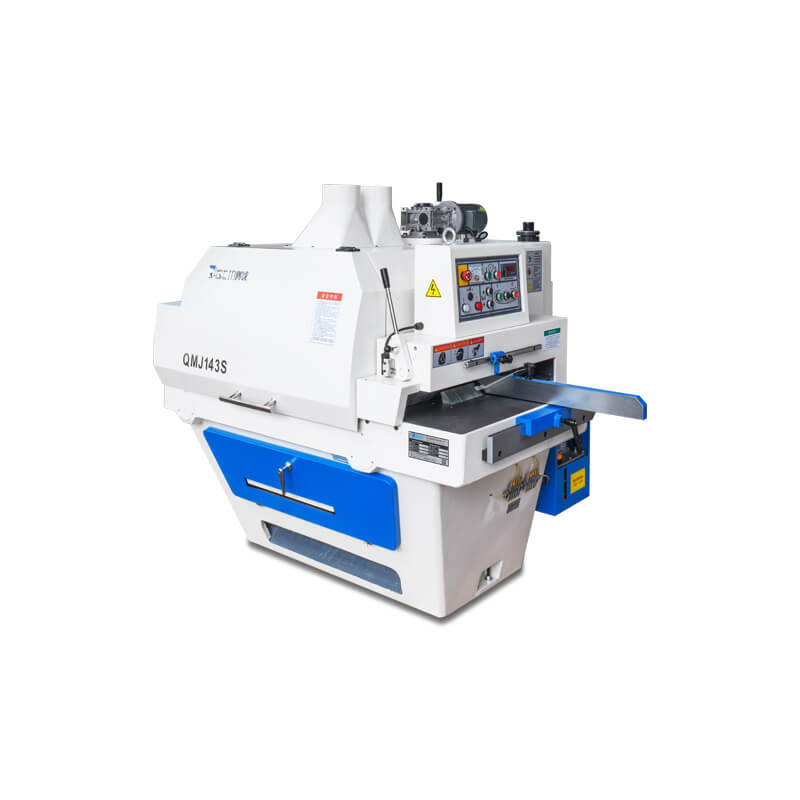

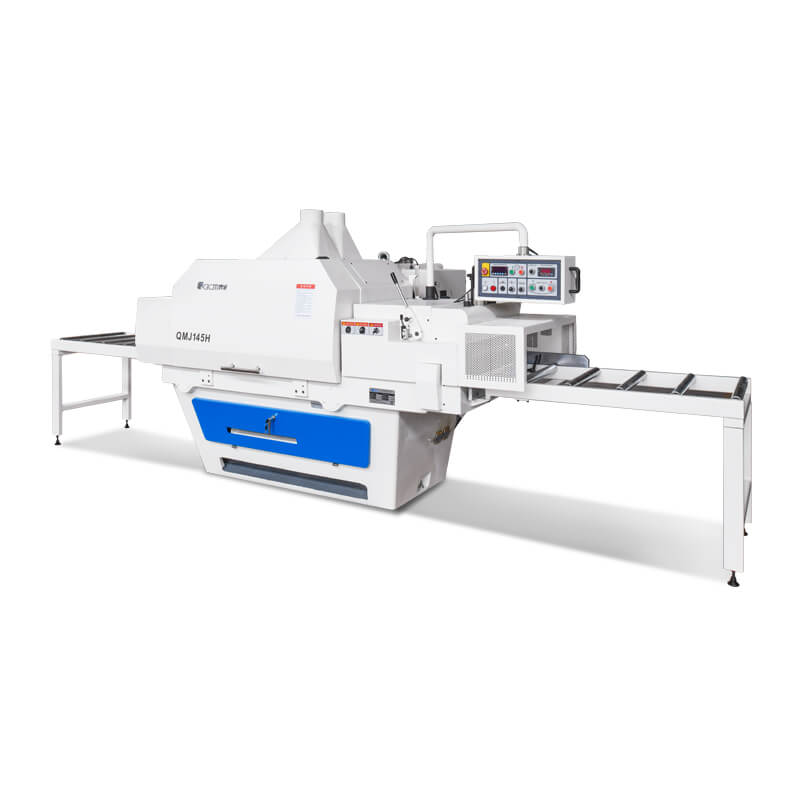

| Specifications | QMJ145H | QMJ143S | QMJ143E | MJ1440E | |
|---|---|---|---|---|---|
| Max. working width | mm | 500 | 300 | 300 | 300 |
| Working thickness | mm | 10-170 | 10-85 | 10-120 | 10-115 |
| Min. working length | mm | 740 | 530/200 | 600/300 | 450 |
| Saw spindle dia. | mm | φ60 | φ55 | φ55 | φ50 |
| Reducing sleeve dia. | mm | φ80 | φ70 | φ70 | φ70 |
| Saw spindle speed | r/min | 2600 | 4000 | 4000 | 4500 |
| Feeding speed | m/min | 3-24 | 4-30 | 4-30 | 6-24 |
| Total power | kW/HP | 81.25/109 | 32.57/43.5 | 39.57/52.7 | 33.32/45 |
| Suction hood dia. | mm | 2*φ150 | 2*φ150 | 2*φ150 | 2*φ150 |
| Overall dimensions | mm | 4850*2020*1880 | 1930*1580*1560 | 2200*1500*1580 | 2300*1190*1480 |
| Weight | kg | 4250 | 2250 | 2300 | 1900 |
1. The multi-blade rip saw machine body and workbench are made of high-quality castings, which are specially cast and precision-machined, with stable performance and good precision.
2. The conveyor chain and guide rail of multi-blade rip saw machine are made of special wear-resistant materials, which are specially processed and precision machined, with long service life;
3. The upper and lower triple anti-bounce device is equipped to ensure safe and reliable operation;
4. The spindle of multi-blade rip saw machine is made of special material, precision processing, dynamic balance treatment, and precision assembly, stable operation and high precision;
5. Equipped with imported microcomputer automatic oil injection pump with timed, fixed point and quantitative lubrication, with oil shortage shutdown protection to ensure normal use and life of the machine;
6. Imported large torque transmission deceleration box, strong and powerful feeding;
7.Configured with side protection and power failure device to fully protect human and machine safety;
8. All electrical components and transmission parts are of good brands and components, stable performance;
9. Feeding adopts frequency conversion to adjust the speed, adapting to a variety of materials and thickness of wood processing requirements.
Professional solution: make multi-blade rip cut for thick wood under 120mm. Heavy and stable casting machine body, and equipped with advanced V guide and chain plates, and the saw shaft has sufficient strength and rigidity to do multi-slice rip cut. Perfect for pencil, and similar small wooden products.
We have different type of multi-blade rip saw machine, like QMJ143E, QMJ145H, QMJ143S, QMJ1440E.
Both one spindle rip saw or two spindles (up and down rip saw machine) are available, with working width from 200-500mm.
customized Motor
In our technical parameter table of 4 sided planer moulder, you can see our standard configuration. If you need, we can upgrade motor power for you.
Saw Blade
Most of our woodworking machinery has no cutting tools when export, because different woodworking mills need different type of cutters. To improve our service, we can help you buy cutting tools.
LASER GUIDE
For straight line rip saw and single-blade rip saw, customers will add laser guide for better cutting, cutting will be more accurate. The straight line will be more straight.
ENTIRE CAST IRON
Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard configuration.
ANTI-REBOUND SAFETY DEVICE
The anti-rebound safety device located on the infeed ensures operational safety.
Wear resistance guide track
The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance
Automatic lubricator
The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
Dust Removal Brush
The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time
HIGH PRECISION SPINDLE
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
PROFESSIONAL ELECTRICAL APPLIANCES
Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance
CAST IRON CHROMED FEED TABLE
The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
