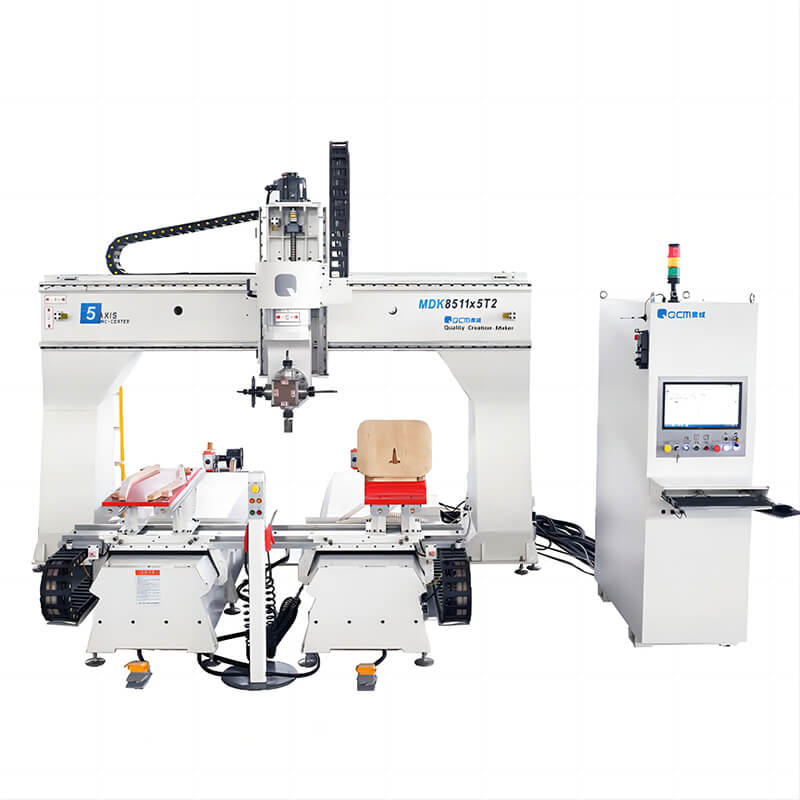

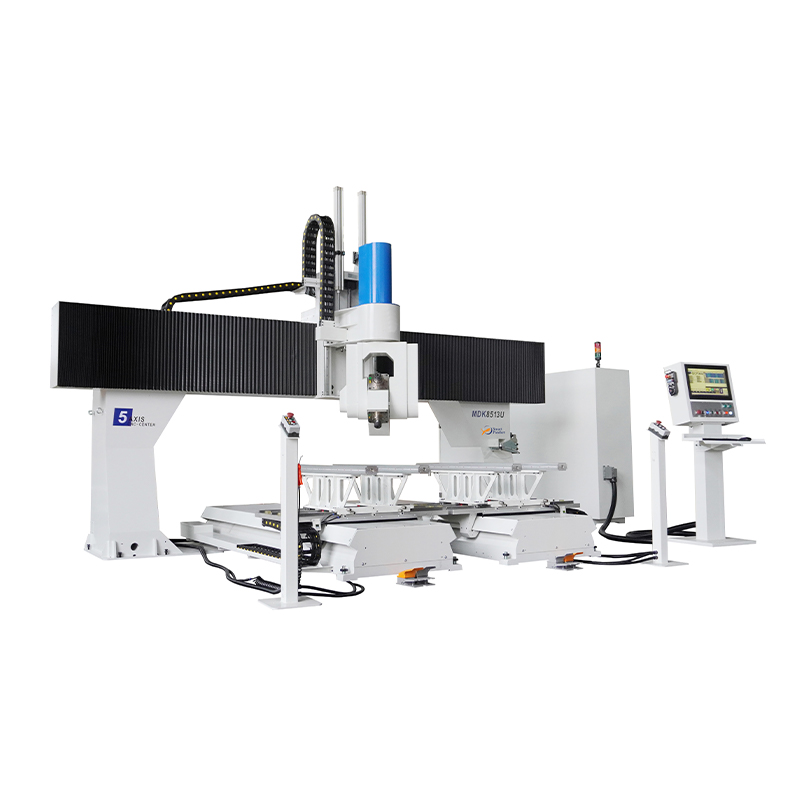

| Model | Unit | MDK8511S | MDH8511S | MDK8513U |
|---|---|---|---|---|
| X-axis route | mm | 3050 | 3050 | 3700 |
| Y-axis route | mm | 2200 | 2200 | 2400 |
| Z-axis route | mm | 1000 | 1000 | 800 |
| V-axis route | mm | 2200 | 2200 | 2400 |
| C-axis route | mm | ±400° | ±400° | ±400° |
| A-axis route | mm | 360° unlimited | ±180° | 360° unlimited |
| X-axis speed | m/min | 40 | 40 | 60 |
| Y-axis speed | m/min | 40 | 40 | 45 |
| Z-axis speed | m/min | 30 | 30 | 30 |
| V-axis speed | m/min | 40 | 40 | 45 |
| A-axis speed | r/min | 22.5 | 22.5 | 22.5 |
| C-axis speed | r/min | 22..5 | 22..5 | 22.5 |
| Spindle | 2×GMT | 1×GMT(auto)+1×GMT | 4xGMT | |
| Tool change | Manual | Auto+manual | Manual | |
| Spindle cooling | Air cooling | Water cooling+air cooling | Air cooling | |
| Spindle power | kW | 2×7.5 | 11+7.5 | 4×9.6 |
| Spindle speed | r/min | 24000 | 24000 | 24000 |
| Tool magazine | no | 8 | no | |
| Max working current | <=120A | <=120A | <=120A | |
| Worktable | 2 | 2 | 2 |
1. The frame and beam are welded with high-strength steel. With mechanical analysis and design, high temperature annealing and vibration aging treatment, the frame has high stability and is not easy to deform.
2. Double 7.5KW power spindles; max 24000rpm/min, good heavy cut. 4 manual tool-changing tool stations, clamping 4 tools one-time, to meet most of the workpiece processing requirements.
3. Double tables, can be used synchronously or alternetely.
4. Vacuum bar worktable. The panel/board workpiece can be directly positioned on the vacuum worktable without the
Solid wood furniture factories,billiard table legs, stair case columns, sofas, chairs, etc.
musical instruments
furniture
feedinartwork
chair
casting machine body
The frame and beam are welded with high-strength steel. With mechanical analysis and design, high temperature annealing and vibration aging treatment, the frame has high stability and is not easy to deform.
OKUMA CNC gantry machining center
Highly precisely machined by OKUMA CNC gantry machining center.
Y-axis direction
Y-axis direction: cast iron table base,stable and not easily deformed.
BALL SCREW
X/Y/Z axis use ball screw transmission from GTEN. High accuracy.
Guide Rail and Slider
Linear Guide Rail and Slider, from HIWIN. X/Y/Z axis move along with it good quality and performance.
A/C axis reducer
From Japan nabtesco industrial robot special RV reducer, higher transmission accuracy.
Spindle
Double 7.5KW spinlde motors, max 24000rpm/min. 4 heads, manual changing. Spindle starts in advance, saving the tool changing time. The spindle swing holder adopts high strength aluminum alloy material to reduce its weight but improve the rigidity.
Worktable
Double tables: can be used synchronously or alternetely. Vacuum bar worktable: The panel/board workpiece can be directly positioned on the vacuum worktable without the use of clamping tools.
Electrical Control System
Control System： OSAI OPENkey
Servo Drive and Motor：YASKAWA
Inverter：Rexroth.
Operation interface
Industrial-grade computer controller,second time development of the operationinterface,easy to learn and operate programming, simulation, processing.
Tool settting instrument
Machine goes with tool setting instrument, which can realize automatic checking, avoid the machining error caused by manual measurement error.
Wireless handwheel
Better operation than wired handwheel,faciliate operator to observe the running and try cutting.
