PRODUCT DETAILS

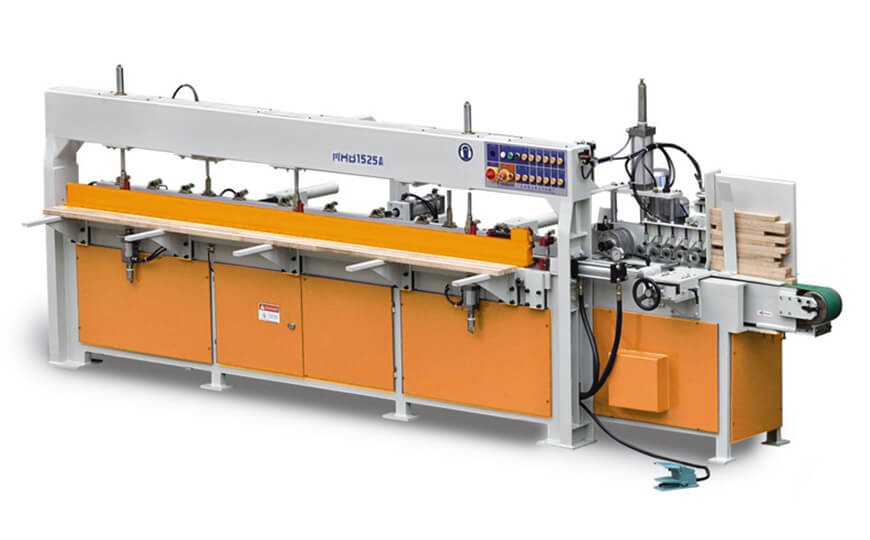

Product Name: finger joint presser, finger joint pressing machine
Application: finger joint line, finger joint board
Max. Pressing Length: 2500mm
Max. thrust for oil pressure: 3000kg
Size of working table: 2500*380mm
Menu
Technical PARAMETERS DETAILS
| Specification | MH1525D | MH1525 | MH1525E | MH1525F | |
|---|---|---|---|---|---|
| Max. pressing dimensions | 2500*80*40 | 2500 | 2500*80*40 | 2500*80*60 | |
| Size of working table | mm | 2500*380 | 2500*400 | 2500*380 | 2500*380 |
| Saw blade power | kW | 2.2 | 2.2 | 2.2 | 2.2 |
| Hydraulic system power | kW | 3.75 | 2.2 | 3.75 | 3.75 |
| Conveying motor power | KW | / | / | 1.1+0.75 | 4.1 |
| Max. thrust for oil pressure | kg | 3000 | 3000 | 3000 | 3000 |
| Total motor power | kW | 5.95 | 4.4 | 7.8 | 10.05 |
| Overall dimensions | mm | 5520*1255*1370 | 3600*1100*1500 | 4850*1255*1370 | 5900*1255*1370 |
YOUTUBE VIDEo
Finger joint pressing machine is to compose the shaped and gluned wood pieces into the finished long piece.
We have different typed finger joint press.

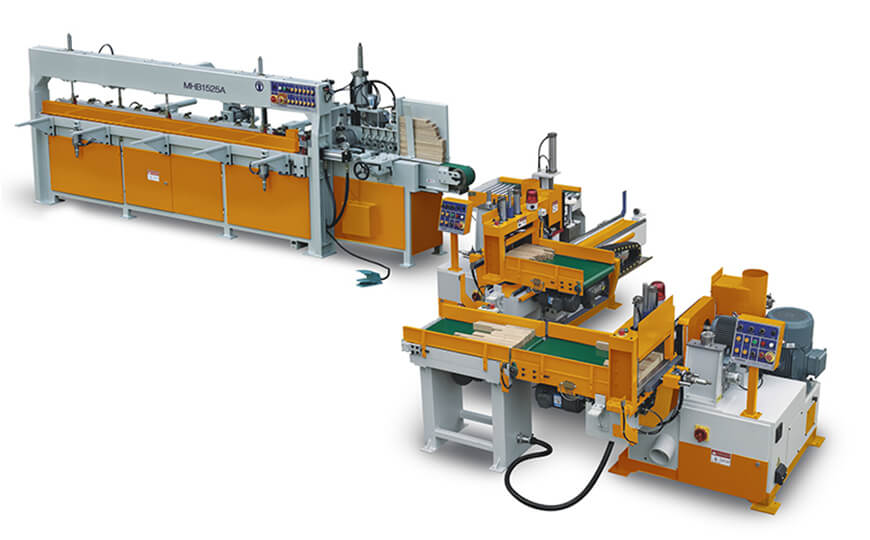

Automatic finger joint presser: MHB1545A fully enclosed type, MH1525F chain conveyor type, MH1525E belt conveyor type,
Semi-automatic finger joint pressing machine: MH1525D
Hydraulic Manual finger joint pressing machine: MH1525, MH1545, MH1560.
We also has different worktable lenght, 2.5M, 4.5M, 5M, 6M, to meet different production need.
