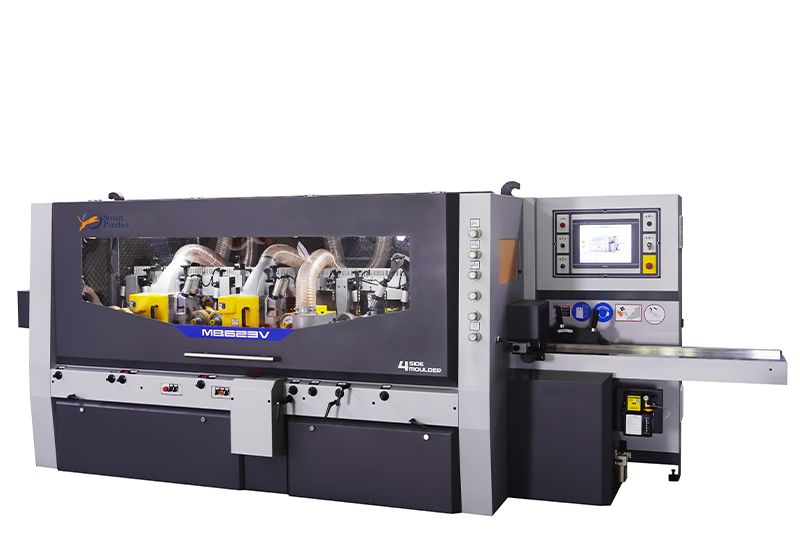

| Four-side Moulder | QMB623V | QMB623C |
|---|---|---|
| Working width | 20-230 | 20-230 |
| Working thickness | 10-150 | 10-150 |
| Min.working length(intermittent/continuous) | 650 | 650 |
| Dia of spindle | φ40 | φ40 |
| Feeding speed | 6-36 | 6-36 |
| Rotation speed of spindle | 6000 | 6000 |
| Cutter dia of first bottom cutter | φ125-φ160 | φ125-φ160 |
| Left/Right vertical cutter | φ108-φ180 | φ108-φ180 |
| The first upper cutter | φ108-φ180 | φ108-φ180 |
| The Second upper cutter | φ108-φ180 | φ108-φ180 |
| Bottom cutter | φ125-φ200 | φ125-φ200 |
| Total power | 44.37 | 43.25 |
| The First bottom cutter | 5.5 | 5.5 |
| Left vertical cutter | 7.5 | 7.5 |
| Right vertical cutter | 5.5 | 5.5 |
| The first upper cutter | 7.5 | 7.5 |
| The second upper cutter | 5.5 | 5.5 |
| The second bottom cutter | 5.5 | 5.5 |
| Feeding motor | 5.5 | 5.5 |
| Beam lifting motor | 0.75 | 0.75 |
| Upper cutter lifting motor | 0.75 | / |
| Radial adjustment of the vertical spindle | 0.37 | / |
| Air supply pressure | 0.6 | 0.6 |
| Vacuum port diameter | 6*φ125 | 6*φ125 |
| Overall dimensions | 4980×1960×1900 | 4500x2000x1900 |
| Weight | 5200 | 4400 |
Professional solution: four-side planing, fit for making wooden floor, wooden doorand hard wood line, etc. Can do deep cutting.
Several kinds of different spindle distribution, and supply optional configuration,meeting the different processing requirements.
in-feeding table
The in-feeding table of our 4 side planer moulder can be lengthened, customized length according to your requirements.
Motor power
In our technical parameter table of 4 sided planer moulder, you can see our standard configuration. If you need, we can upgrade motor power for you.
in & out feeding
In order to save labor cost and improve the productivity for you, we can combine 4 sided planer for you with in-feeding and out-feeding system.
Cutting tools
Most of our woodworking machinery has no cutting tools when export, because different woodworking mills need different type of cutters. To improve our service, we can help you buy cutting tools.
casting machine body
4 sided planer has extra heavy one-piece casting iron machine body. It’s specially heat treated for maximum stability and rigidity by standard configuration.
SIEMENS ELECTRICAL
Our 4 sided planer moulders use Siemens and Schneider electrical products and appliances insure the whole machine run well with a suitable performance
airtac cylinder
Pneumatic pressure of the feed rollers can be easily setted to provide an outstanding feeding effect for our 4 sided planer.
SAFETY ENCLOSURE
The full heavy gauge steel sound insulated safety enclosure serves as a chip guard and helps 4 sided planer moulder to reduce noise and has strobe free lighting.
high precision
All spindles are precision constructed and specially heat treated to provide 4 sided planer moulder maximum cutting stability and permanent accuracy.
heavy duty gearbox
The feed rollers of 4 sided planer are driven through a combination of extra heavy universal shafts and gearbox, ensure no loss of power transmission. A smooth feeding effect is assured.
outstanding feeding
Our 4 sided planer moulder has more top and bottom powered rollers than most competitor’s four side moulder. And this is an important reason for outstanding feeding performance.
hard-chromed
The entire cast iron chromed in-feed table is heat treated for maximum stability. In-feed table & fence adjustment of 4 sided planer moulder is quickly accomplished by means of a quick-setting levers.
